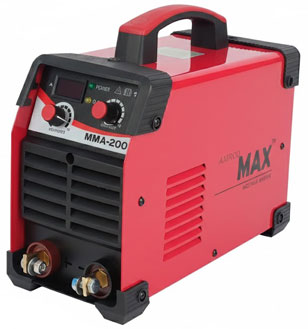

MODEL NO. : MMA200
| INPUT CAPACITY |
1ph,220V±15% |
| RATED INPUT POWER(KVA) |
5.2 |
| CURRENT ( AMPERE) |
0-200Amp |
| NO-LOAD VOLTAGE(V) |
76 |
| EFFICIENCY(%) |
85 |
| INSULATION CLASS |
F |
| PROTECTION CLASS |
IP21S |
| DIMENSION(MM) |
370×150×285 |
| ELECTRODE |
1.6-3.2 |
| WELDING TYPE |
Arc Welding |
| FEATURES |
IGBT Technology / Current Adjustment / Inbuilt Hot Start / Anti-Stick Functions / Arc Force Adjustment / VRD Function |
| WEIGHT OF MACHINE |
5.5 |
| POWER SOURCE TYPE |
Corded |
| ACCESSORIES |
Electrode Cable+ Earth Cable/Wire Brush /Hand Screen |
| MIG WIRE DIAMETER (MM) |
|
---------------------------------------------------------------------------------------------------------------------------------------------

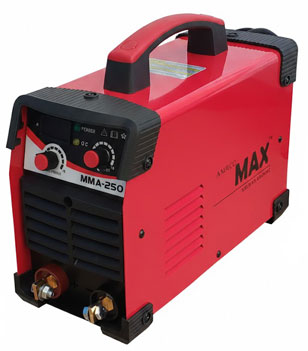

MODEL NO. : MMA250
| INPUT CAPACITY |
1ph,220V±15% |
| RATED INPUT POWER(KVA) |
6 |
| CURRENT ( AMPERE) |
0-250Amp |
| NO-LOAD VOLTAGE(V) |
76 |
| EFFICIENCY(%) |
85 |
| INSULATION CLASS |
F |
| PROTECTION CLASS |
IP21S |
| DIMENSION(MM) |
370×150×285 |
| ELECTRODE |
1.6-3.2 |
| WELDING TYPE |
Arc Welding |
| FEATURES |
IGBT Technology / Current Adjustment / Inbuilt Hot Start / Anti-Stick Functions / Arc Force Adjustment / VRD Function |
| WEIGHT OF MACHINE |
6 |
| POWER SOURCE TYPE |
Corded |
| ACCESSORIES |
Electrode Cable+ Earth Cable/Wire Brush /Hand Screen |
| MIG WIRE DIAMETER (MM) |
|
---------------------------------------------------------------------------------------------------------------------------------------------

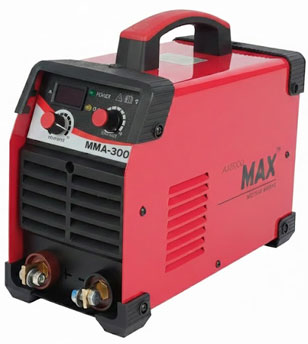

MODEL NO. : MMA300
| INPUT CAPACITY |
1ph,220V±15% |
| RATED INPUT POWER(KVA) |
7.7 |
| CURRENT ( AMPERE) |
0-300Amp |
| NO-LOAD VOLTAGE(V) |
76 |
| EFFICIENCY(%) |
85 |
| INSULATION CLASS |
F |
| PROTECTION CLASS |
IP21S |
| DIMENSION(MM) |
370×150×285 |
| ELECTRODE |
1.6-4.0 |
| WELDING TYPE |
Arc Welding |
| FEATURES |
IGBT Technology / Current Adjustment / Inbuilt Hot Start / Anti-Stick Functions / Arc Force Adjustment / VRD Function |
| WEIGHT OF MACHINE |
6.5 |
| POWER SOURCE TYPE |
Corded |
| ACCESSORIES |
Electrode Cable+ Earth Cable/Wire Brush /Hand Screen |
| MIG WIRE DIAMETER (MM) |
|
---------------------------------------------------------------------------------------------------------------------------------------------

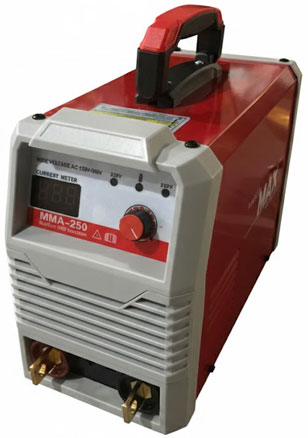

MODEL NO. : MMA250 DUAL
| INPUT CAPACITY |
1ph,220V±15% |
| RATED INPUT POWER(KVA) |
6 |
| CURRENT ( AMPERE) |
0-250Amp |
| NO-LOAD VOLTAGE(V) |
76 |
| EFFICIENCY(%) |
85 |
| INSULATION CLASS |
F |
| PROTECTION CLASS |
IP21S |
| DIMENSION(MM) |
370×150×285 |
| ELECTRODE |
1.6-3.2 |
| WELDING TYPE |
Arc Welding |
| FEATURES |
IGBT Technology / Current Adjustment / Inbuilt Hot Start / Anti-Stick Functions / Arc Force Adjustment / VRD Function |
| WEIGHT OF MACHINE |
5 |
| POWER SOURCE TYPE |
Corded |
| ACCESSORIES |
Electrode Cable+ Earth Cable/Wire Brush /Hand Screen |
| MIG WIRE DIAMETER (MM) |
|
---------------------------------------------------------------------------------------------------------------------------------------------

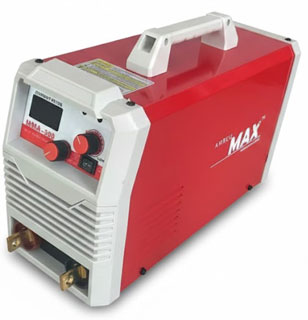

MODEL NO. : MMA300DUAL
| INPUT CAPACITY |
1ph,220V±15% |
| RATED INPUT POWER(KVA) |
8.2 |
| CURRENT ( AMPERE) |
0-200Amp |
| NO-LOAD VOLTAGE(V) |
76 |
| EFFICIENCY(%) |
85 |
| INSULATION CLASS |
F |
| PROTECTION CLASS |
IP21S |
| DIMENSION(MM) |
370×150×285 |
| ELECTRODE |
1.6-4.0 |
| WELDING TYPE |
Arc Welding |
| FEATURES |
IGBT Technology / Current Adjustment / Inbuilt Hot Start / Anti-Stick Functions / Arc Force Adjustment / VRD Function |
| WEIGHT OF MACHINE |
6 |
| POWER SOURCE TYPE |
Corded |
| ACCESSORIES |
Electrode Cable+ Earth Cable/Wire Brush /Hand Screen |
| MIG WIRE DIAMETER (MM) |
|
---------------------------------------------------------------------------------------------------------------------------------------------
